Qingdao Crowns Machinery Co., Ltd.

Industrial Filtration Equipment​ SPECIALIST Industry Leading Manufacturer of Industrial Filtration Equipment We Believe That By Combining Our Strengths, We Can Bring Greater Value To Our Customers.

Verified Supplier

3 Years

Home > Automatic Self Cleaning Filter >

Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

Qingdao Crowns Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers

    Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers
    • Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers
    • Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers
    • Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers
    • Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers
    • Buy cheap Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids from wholesalers

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Ask Lasest Price
    Brand Name : Crowns
    Certification : ISO 9001; CE
    Price : $1000-$5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000SETS/PER YEAR
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Introduction

    Automatic self-cleaning filter is a vertical electric brush or scraper filter, with optional shell materials of

    carbon steel and stainless steel 304 or 316, and optional filter screen materials of 304 or 316 stainless steel.

    It is highly efficient and corrosion-resistant, suitable for harsh environments, high oil content, and high water

    fouling loads. it`s working principle is: the motor drives the stainless steel brush to suck up dirt from the water,

    clean the dirt, and discharge the dirt from the drain valve.

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Product Parameters

    Model
    Dimension
    Inlet&outlet
    Max. flow
    Pressure
    Micron
    Motor
    CS-250-50
    φ273*1000
    DN25~DN50
    50 t/h
    10bar
    ≥50μm
    0.18kw/RV040
    CS-300-100
    φ325*1200
    DN80~DN125
    100 t/h
    10bar
    ≥100μm
    0.37kw/RV063
    CS-400-150
    φ426*1300
    DN150
    200 t/h
    10bar
    ≥200μm
    CS-480-200
    φ480*1550
    DN200
    300 t/h
    10bar
    ≥300μm
    CS-530-250
    φ530*1650
    DN250
    450 t/h
    10bar
    ≥300μm
    0.75kw/RV075
    CS-600-300
    φ600*1750
    DN300
    550t/h
    10bar
    ≥300μm
    CS-700-350
    φ700*2000
    DN350
    700t/h
    10bar
    ≥500μm
    CS-800-400
    φ800*2150
    DN400
    1000t/h
    10bar
    ≥800μm
    CS-900-450
    φ900*2300
    DN450
    1200t/h
    10bar
    ≥1000μm
    CS-1000-500
    φ1000*2500
    DN500
    1500t/h
    10bar
    ≥1500μm
    CS-1100-600
    φ1100*2600
    DN600
    1800 t/h
    10bar
    ≥3000μm
    1.5kw/RV090
    CS-1200-700
    φ1200*2800
    DN700
    2300 t/h
    10bar
    Note: Material :galvanized steel /Stainless steel ;
    Customization Accepted ;
    Customer Case

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

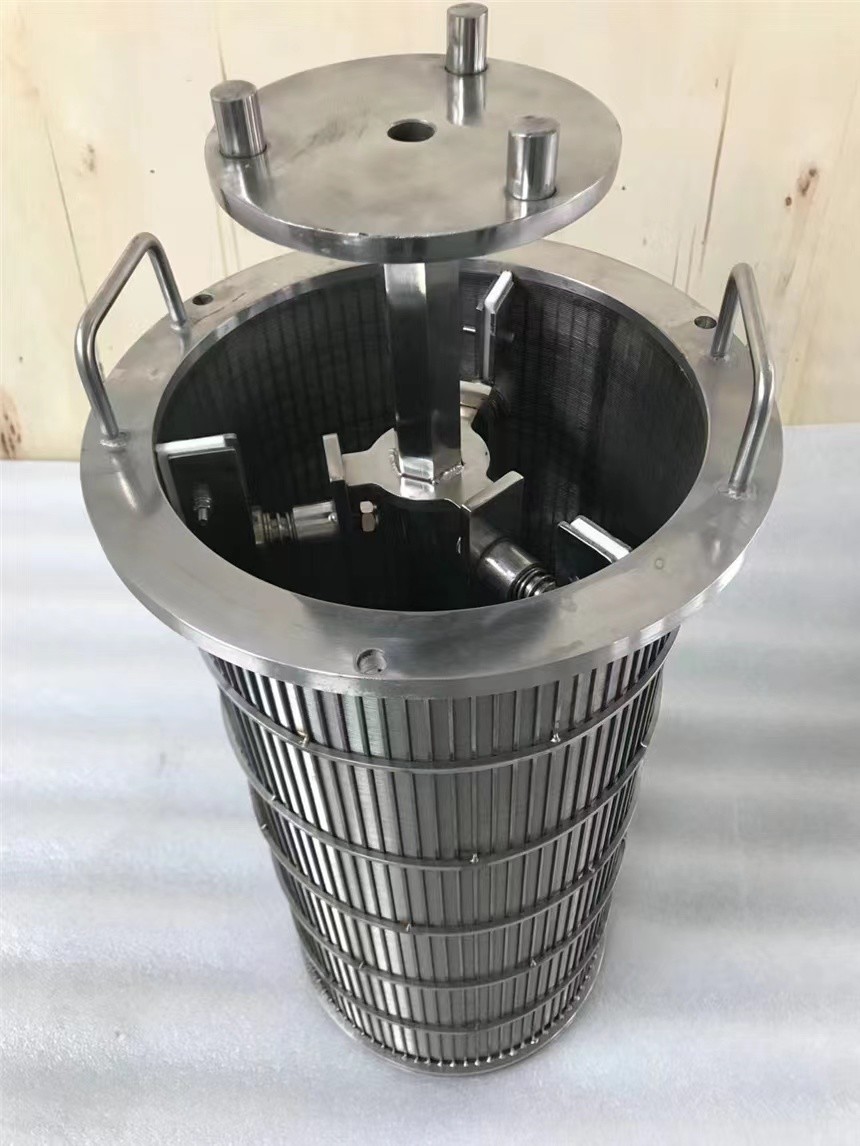

    Detailed Images

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    Manufacturing Automatic Self Cleaning Filter for Cooling Water and Process Fluids

    FAQ

    Q1 : Where is your factory located?
    A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

    Q2 : Are you an integrated supplier for industrial filter machine ?
    A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

    Q3 : How about the quality control in your factory?
    A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

    up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

    before shipment.

    Q4 : Will you offer the pre-sales service?
    A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

    also water electrical,machine layout in factory, etc.

    Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

    machine?
    A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

    and support training to workers also.

    Q6 : What is the delivery time of the machine?
    A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

    time of standard machine could be within 10-30 days

    Q7 : What is the warranty of the machine ?
    A7 : The whole machine’s warranty period is 12 months and key parts will be depended.


    Q8 : Do you provide any spare parts with machine?
    A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
