0.2mm Gap Welded Wedge Wire Screen Sieve Pipe Bend Screen Johnson Well Filter

Ask Lasest Price
Brand Name :	Crowns
Certification :	ISO 9001; CE
Price :	$13-$230/piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000SETS/PER YEAR
Delivery Time :	7-20 working days

Add to Cart

Product Details
Company Profile

0.2mm Gap Welded Wedge Wire Screen Sieve Pipe Bend Screen Johnson Well Filter

Introduction

wedge wire screen is a type of filtering screen used in various industries for separation, filtration, and sizing processes.

Unlike traditional wire mesh screens, which are made of woven wires, wedge wire screens are made of stainless steel or

other corrosion-resistant materials and feature a unique profile that allows for precise filtration.

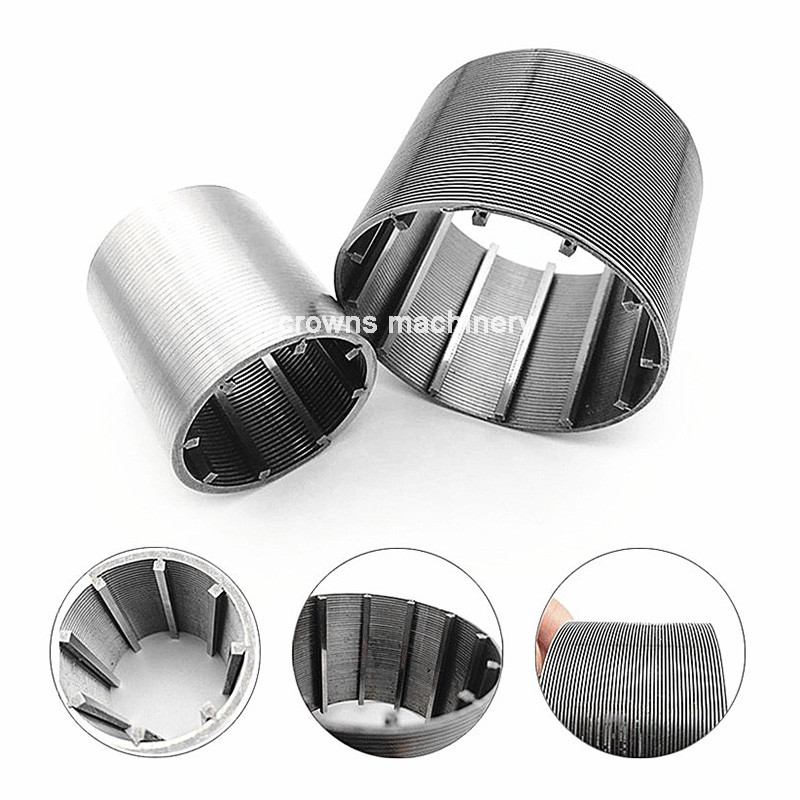

The design of wedge wire screens consists of a series of triangular-shaped wires (hence the name "wedge") positioned

parallel to each other and welded onto support rods. These triangular wires are V-shaped, with the apex of each wire facing

inward. This construction creates precise gaps between the wires, providing accurate filtration while also offering strength

and durability.

0.2mm Gap Welded Wedge Wire Screen Sieve Pipe Bend Screen Johnson Well Filter

wedge wire	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material	stainless steel (304,316 etc.)
Length	up to 6 meters
Diameter	from 25mm to 1200mm.
End connection	Plain beveled ends, flanged or threaded couplings
Characteristics	The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. It can be used in many kinds of medium filtering.

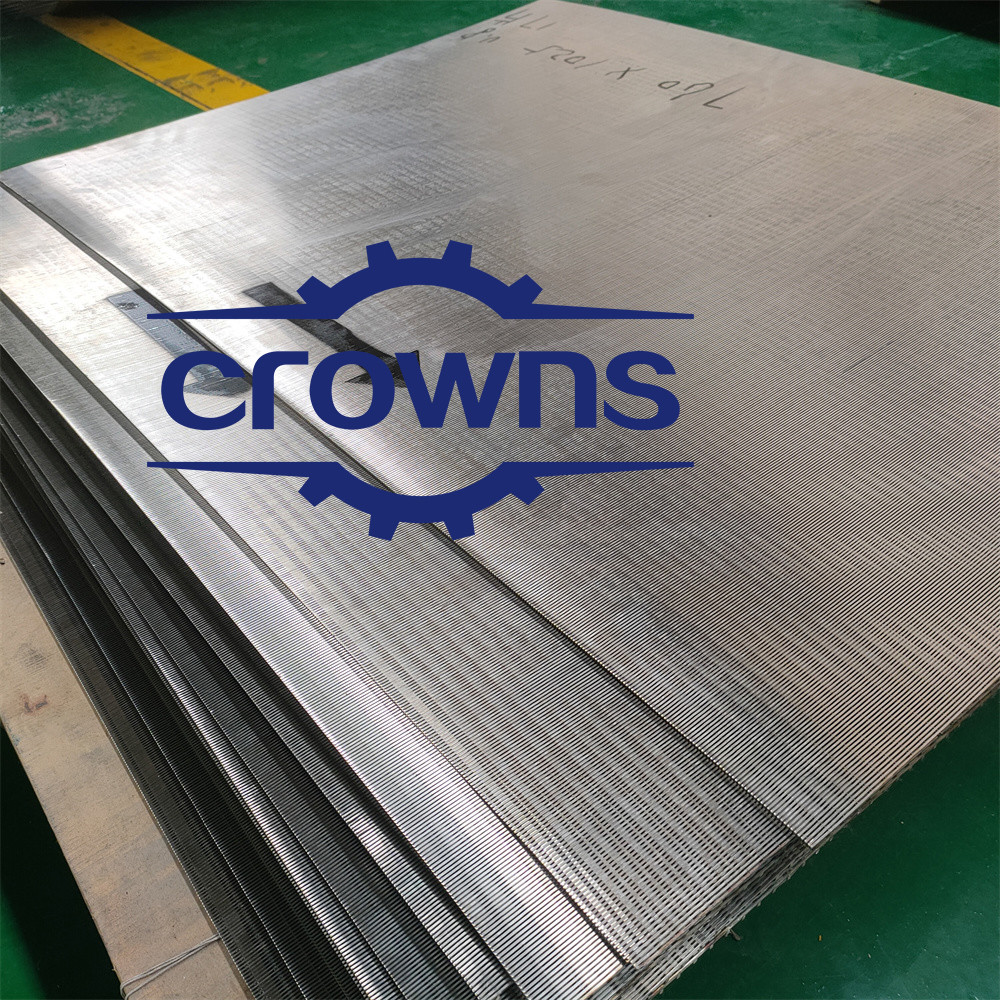

Relevant Images

0.2mm Gap Welded Wedge Wire Screen Sieve Pipe Bend Screen Johnson Well Filter

The reason why you choose us

Professional technology, Completed testing equipment

We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.

Small profits but quick turnover

Our Scale Production will offer you a lower price, which can help our customer to get more profite without to pay a heavy price.

Perfect After Sale Service10 years' warranty

With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us.

FAQ

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
