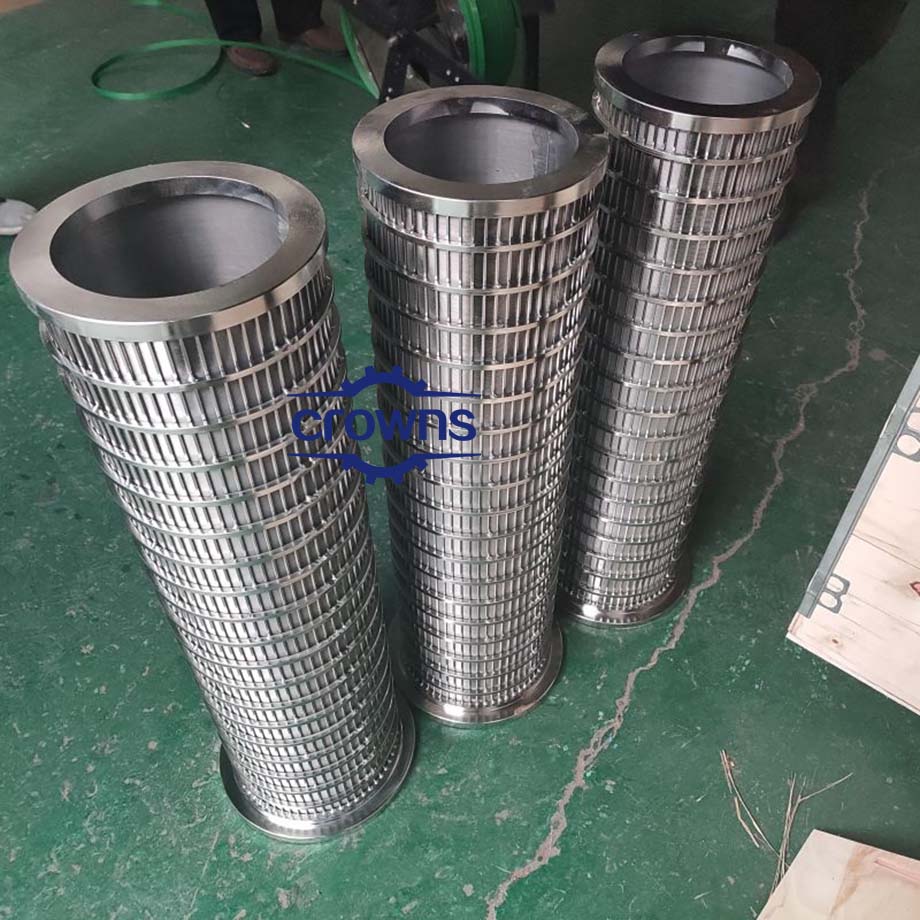

Wedge Wire Screen Filter Drum For Cow Dung Dewatering Filter
Elements
Introduction
Solid liquid separation screen material: 304,304L, 316,316L,321,
imported high strength stainless steel wedge wire.
Backwash filter filter element, dewatering of feces, dry and wet
separator. Common size gap :0.1-0.3mm backwash filter
filter core :0.3-0.4mm chicken manure dehydrator; 0.5-0.6mm dry and
wet pig manure separator; 0.75mm--1mm dry and
wet cow manure separator. Inner diameter: 175mm, 177mm, 180mm 195m
198mm 205mm 260mm; Length :450mm,
495mm, 510mm, 550mm, 600mm,610mm, 800mm.
Product features: high screening rate, abrasion resistance, corrosion resistance,
anti - slip, anti - vibration, strong elasticity,
toughness, not close.The mesh section is trapezoid or wedge.There's
room in the gap.It is made of stainless steel wire cold
rolled screen, support bar is welded by automatic production
equipment, screen seam uniform, stable welding quality, high
porosity, long service life, high strength, steel degree and
bearing capacity, can be made into various shapes of screen filter
device.
Material | SS304,SS 304L,SS 316,SS316L,SS321,Duplex,Hastelloy,etc |
OD | 19-2000mm |
ID | 13-1931mm |
Length | Up to 6M |
Slot | Min.20 micron |
Wedge wire | 0.5*1.5 | 0.75*1 | 1*2 | 1.5*2 | 2*3 | 2*4 | 3*5 |
Support wire | 1.5*2.5 | 1.5*2.5 | 1.5*2.5 | 1.8*2.5 | 2*3 | 2*4 | 3*5 |
2*3 | 2*3 | 2*3 | 2*3 | 2*4 | 3*5 | 3*6 |
| | | | 3*5 | 3*6 | 3*10 |
| | | | 3*6 | 3*10 | 4*7 |
| | | | 3*10 | 4*7 | 5*6 |
| | | | 4*7 | 5*6 | 5*8 |
End | Flange,metal ring,cross connector,closed,etc |
Note | Customized is available |
Application
* Petroleum industry. Oil filtration.
* Water treatment industry. Desalination of seawater,treatment of
industrial water and domestic water. Water softening treatment.
* Chemical industry. End products of chemical organic solution
filtration, such as acid, alkali liquid filtration, alcohol and
other products filtering.
* Hydro-geological exploration.
* Geothermal development.
Relevant Images
FAQ:
Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao
district ,Qingdao city, China
Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer
according to customer’s requirement.
Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and
all the production step must follow up this SOP. Every machine
needs at least automatic running over 72 hours and must be
inspected carefully before shipment.
Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support
customers not only including machine, technology also water
electrical,machine layout in factory, etc.
Q5 : What about the after-service? Will you send your engineer to
my country to help commission and install the machine?
A5 : Surely, we have many experience technical engineers for
oversea service, they would help you install machine and support
training to workers also.
Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the
machine options. Normally, the delivery time of standard machine
could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts
will be depended.
Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to
customer according to different machines
