Curve shape v wire 100 200 300 500 micron 304 stainless steel wedge
wire filter screen
Product Description

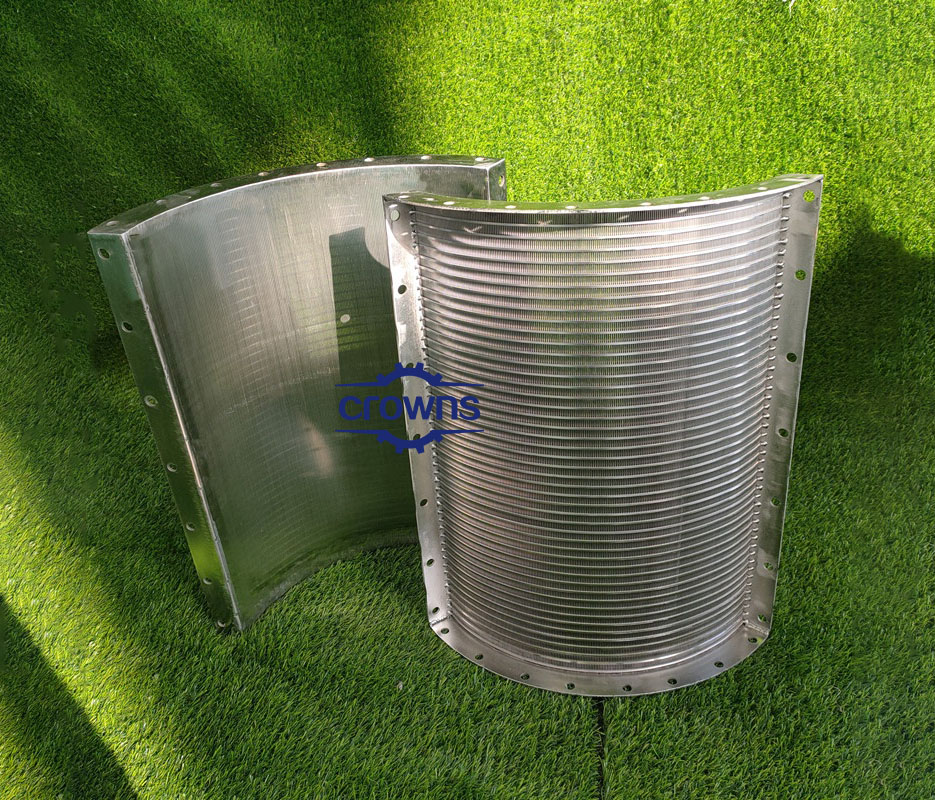

The sieve bend screen – also called bend screen – comprises a
curved screen for filtration. The bend screen provides filtration
by guiding the particles along with the curved sieve filter screen.
The shape of the sieve bend screen offers a high filtration rate
because of the forces exerted by the particles in the flow over the
sieve bend. Thus, it is used for different applications that
benefit from bend screen geometry.The Sieve Bend is also known as a
DSM Screen, as it was developed by the Dutch State Mines. Sieve
Bend Screens are useful forsizing and dewatering applications to separate solids from liquids,
as well as solid/solid separation for dry feed applications.
Main Advantages
Outstanding filtration performance
Customized bend screen design
Corrosion resistance Durable
long service life
Precise open gap
High capacity compared to flat panel wedge wire screen
Parameters
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
| Length Range | Up to 6000mm |
| Width Range | Up to 6000mm |
| Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) |
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.5
2x3 | 1.5x2.5
2x3 | 1.5*2.5
2x3 | 2x3 | 3*5 | 3x5 | 3x5
4*6
5*8 |
| Angle | 90°,120°,140°,150°,160° etc. |
| Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. |
| Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc,
according to your request. |
| Note | Customized according to requirement |
Applications
With the advantages of the bend screen geometry, they are used in
different applications as a filtering element. For example, they
are used in mining applications, The main applications of the sieve
filter screen are: Water treatment /Food processing /Particle
filtration /Coal removal.....
FAQ
Q1: What is the Model Number of the Sand Mill Sieve Screen?
A1: The Model Number of the Sand Mill Sieve Screen is sieves
screen-7HRB.
Q2: Does this product have any Certification?
A2: Yes, this product has CE Certification.
Q3: What is the Minimum Order Quantity?
A3: The Minimum Order Quantity is 10 SETS.
Q4: What is the Price of the Sand Mill Sieve Screen?
A4: The Price of the Sand Mill Sieve Screen is $36-$95 / Set.
Q5: What is the Packaging Details?
A5: The Packaging Details is wooden carton.
