High Pressure Stainless Steel Wedge Wire Mesh Filter Tube Johnson
Wedge Screen Water Pond Sieve Slotted Filter Pipe
Introduction
Johnson screen tube is welded by profile wire and support rod. lt
can be used in deep well pumps and submersible pumps, and can also
be used in water treatment equipment
like environmental protection, desalination treatment of seawater
into industrial water and domestic water, water softening
treatment, petrochemical
industry, terminal filtration of petroleum products, filtration of
chemical acid and alkali liquids.
Product features: high screening rate, abrasion resistance, corrosion resistance,
anti - slip, anti - vibration, strong elasticity, toughness, not
close.The mesh section is trapezoid
or wedge.There's room in the gap.It is made of stainless steel wire
cold rolled screen, support bar is welded by automatic production
equipment, screen seam uniform, stable
welding quality, high porosity, long service life, high strength,
steel degree and bearing capacity, can be made into various shapes
of screen filter device.
| wedge wire | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| support rod | Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
| Material | stainless steel (304,316 etc.) |
| Length | up to 6 meters |
| Diameter | from 25mm to 1200mm. |

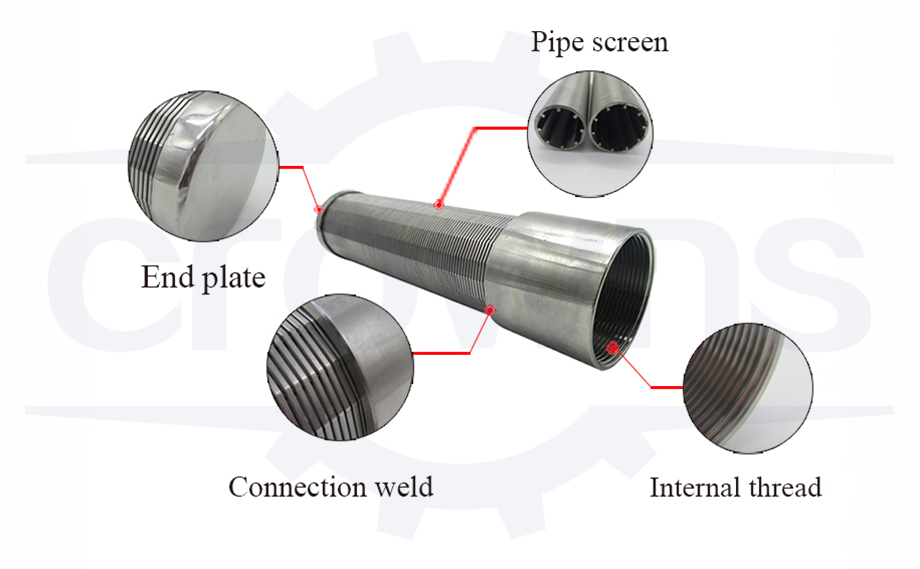

| End connection | Plain beveled ends, flanged or threaded couplings |

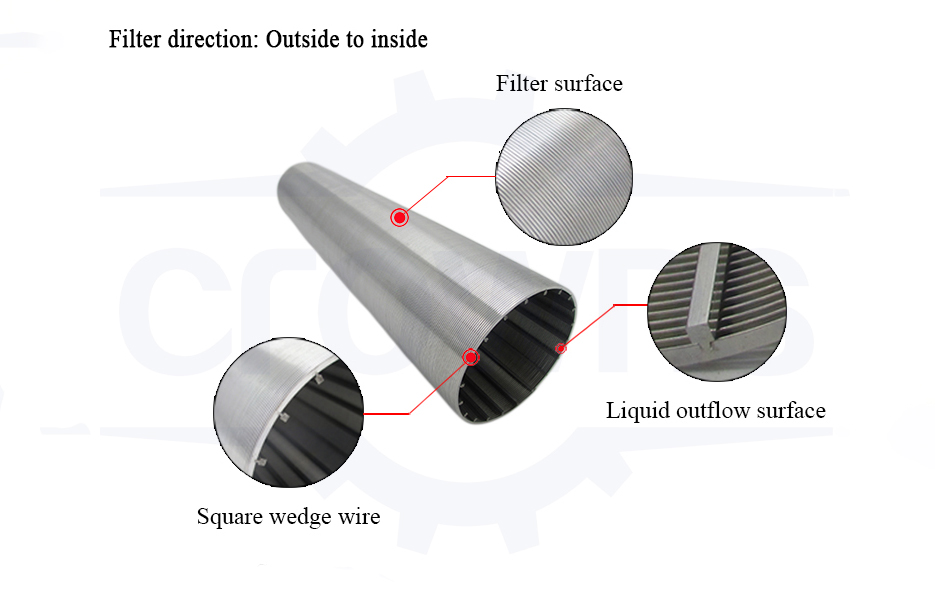

| Characteristics | The stainless steel wedge wire screen is made up of rods and warp.
The rod can be round wire, triangular wire or trapezoid wire. The
warp is triangular wire (V-shaped wire). Water well screens have a
structure and high open area, as well as accurate slot dimension.
It can be used in many kinds of medium filtering. |

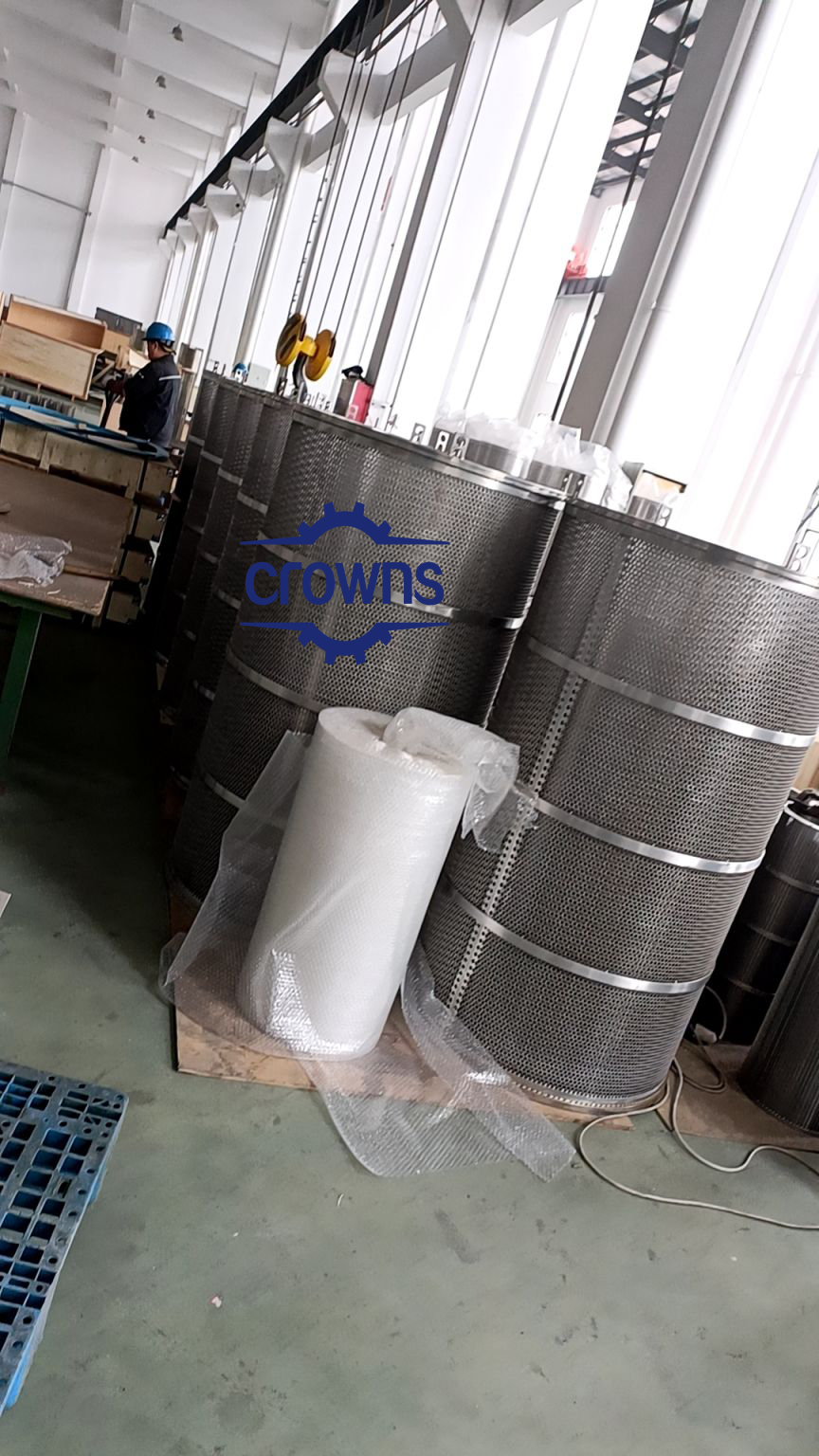

Relevant Images
