Customize Stainless Steel Wire Mesh Filters Round Perforated Perforated Pipe/Tube
Product overview

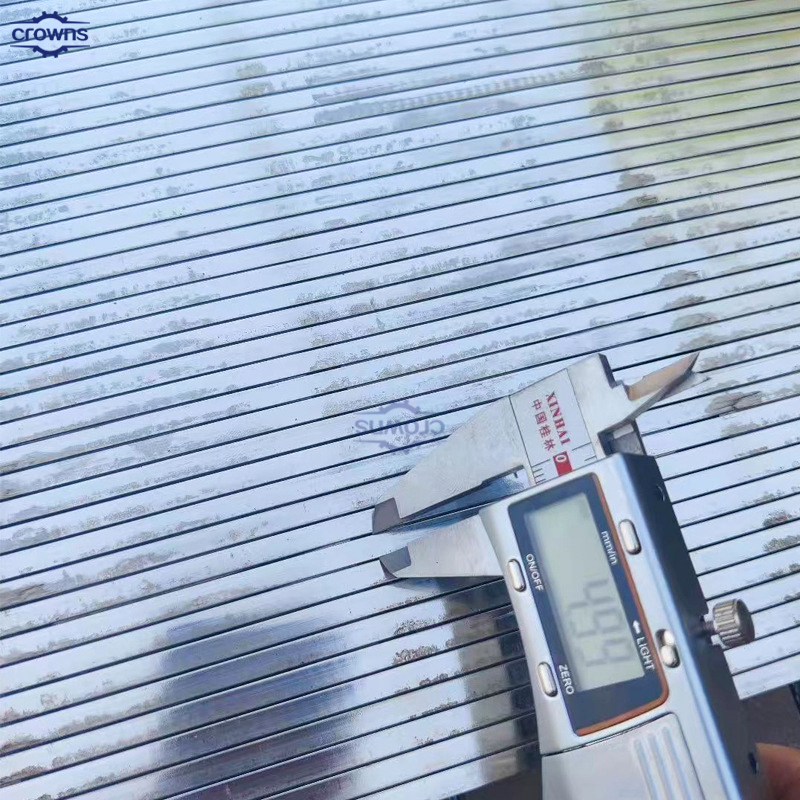

Wedge wire screen is a metal mesh product widely used in screening, filtration, dehydration and desliming operations for sieving and filtration. The screen has high strength, rigidity and load carrying cappacity and can be made into a variety shapes of rigid screening filters.
Product Name:stainless steel wedge wire screen
Material: 304, 304L, 316, 316L stainless steel wire
Surface profile type:triangle wire
Support profile type:round bar, rectangular bar, wedge wire, triangle wire.
Slot size:0.05-10mm
Pitch:10 mm - 35 mm
Panel width:500 mm - 2000 mm.
Panel length:500 mm - 3000 mm.
Standard roll length :Standard length: 1m - 6m
Standard roll diameter :ranging from 30 to 1500mm
| wedge wire | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| support rod | Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
| Material | stainless steel (304,316 etc.) |
| Length | up to 6 meters |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
| Characteristics | The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. It can be used in many kinds of medium filtering. |
Product Paramenters
The screen is easy to leak, resistant to wear and corrosion. The cross section is trapezoidal, with narrow gap at the top and wide one at the bottom. The sieves are even, the welding quality is stable, the open rate is high, thus it has long service life, high strength, rigidity and bearing capacity, it can be made of rigid screening filter of various shapes. It is widely used for screening liquid, powder and other materials in mining, coal, petroleum, fertilizer, food, salt, environmental protection, chemical, metallurgy, mining, pharmaceutical purification, filter tanks, water treatment equipment, drilling fluid purification and other industries.
Functions and characteristics
1. Good wear resistance and long service life, which is more than 10 times of metal screen and 3-5 times of ordinary rubber plate. 2. The cost of ore consumption per ton is lower than metal screen.
3. Good moisture resistance and abrasion resistance. 4. It can reduce vibration and noise. The noise is 10dB lower than metal screen. 5. Automatic cleaning, high screening efficiency.Gap (mm): 0.10,0.15,0.2,0.25,0.30-3, which can be made according to requirements of customer.
Product Specifications
Application
You will find our Sieve Bends useful for your tasks in any of the following areas:
* Civil aggregate
* CIL process
* Dewatering
* Trash
* Scalping
* Sizing
* Classification
* Waste water
* Food processing
Advantages
1. Find efficiency and separation with all sizes of quality Sieve Bends.
2. Quality-crafted Sieve Bends in all sizes, suitable for a range of screening media.
3. Quick and Easy Installation.
4. The oversize product is distinctly wetter than that obtainable with vibrating screens or high-speed shakers.
5. Wedge wire sieve bend screens have great capacity than the traditional vibrating screens.
6. Wedge wire is the optimum dewatering screen, Polyurethane screens are a cost-effective screening solution. Sieve bend screens in both polyurethane and wedge wire to provide the most efficient solution for your plant.
7.Easy separation of solids from slurry.
Customization:
We provide V-Wire Baskets, Wedge Wire Baskets, Wire Mesh Containers with customized service. Our product model is AF-05-87b4 and minimum order quantity is 15 sets. Price range is from $24 to $62 per set. Packaging details is wooden carton. Delivery time is about 30 working days. Payment terms accepted are L/C, D/A, D/P, T/T, Western Union, MoneyGram. We can offer 3000SETS/PER YEAR. The wire diameter is 2.03mm and surface treatment is polishing. The slot length is 3.2mm and open area is 38.5%. Edge treatment is smooth.
Packing and Shipping:
Wedge Wire Baskets Packaging and Shipping:
The wedge wire baskets will be securely packed and shipped in corrugated cardboard boxes. The boxes will be lined with bubble wrap or styrofoam to ensure that the baskets are not damaged during shipping. The boxes will be sealed with packing tape to ensure that the contents remain secure during transit. A tracking number will be provided for each shipment to allow for easy tracking.
The reason why you choose us:
Professional technology, Completed testing equipment
We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.
Small profits but quick turnover
Our Scale Production will offer you a lower price, which can help our customer to get more profite without to pay a heavy price.
Perfect After Sale Service10 years' warranty
With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us.
FAQ
Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow
up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully
before shipment.
Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology
also water electrical,machine layout in factory, etc.
Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the
machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine
and support training to workers also.
Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery
time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
