    Water Treatment Bag Filter Housing Stainless Steel Multibags Filter Housing

    Ask Lasest Price
    Brand Name : Crowns
    Certification : ISO 9001; CE
    Price : $199-$1780/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000SETS/PER YEAR
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Water Treatment Bag Filter Housing Stainless Steel Multibags Filter Housing

    Stainless Steel Multi Bags Filter Housing Industrial Water Filters For Food Industry

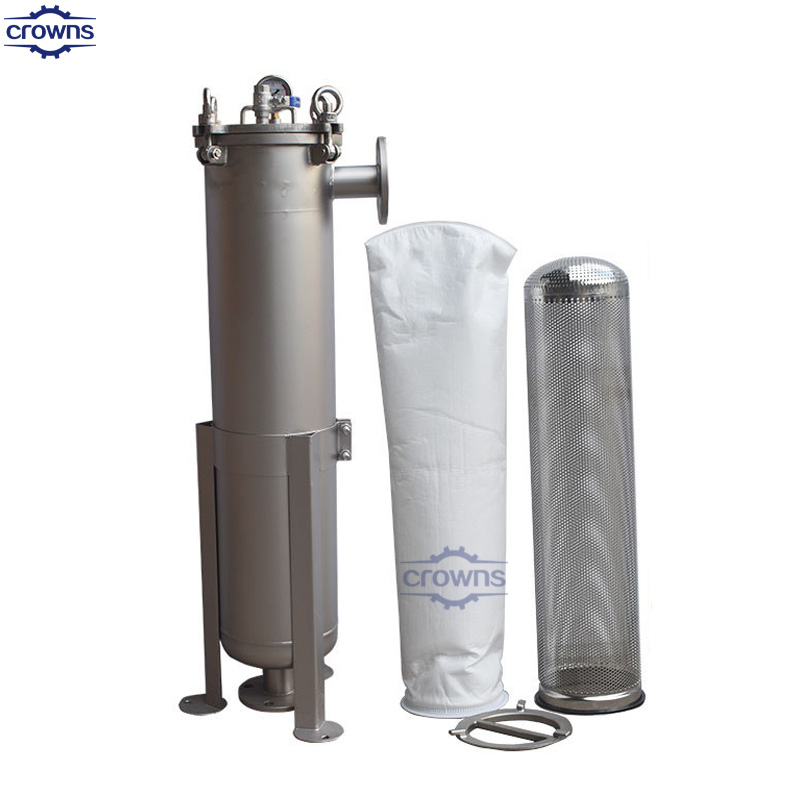

    Bag filter housing

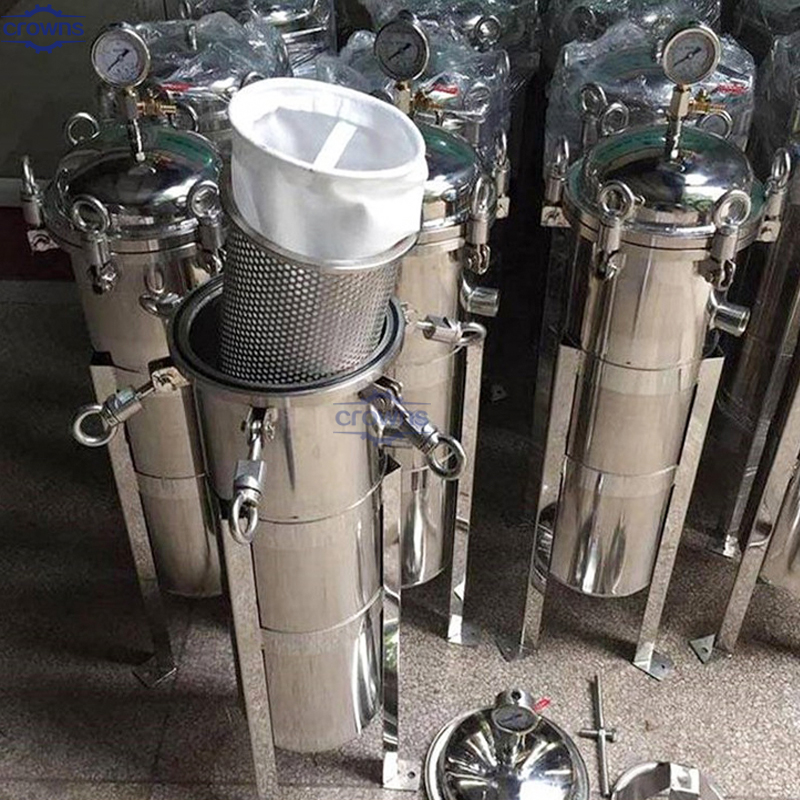

    The bag filter is a multi-purpose filtration equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. The inside of the bag filter is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. The impurities are intercepted in the filter bag and can be used continuously after the filter bag is replaced.
    Bag filters are divided into three categories according to the material: Stainless steel bag filter (SS316L, SS304), PP bag filter, the filter filtration precision is in the range of 0.5-200 microns.

    Standard
    GB, American Standard, German standard, Japanese standard, customized; single bag, parallel bag, multi-bag, cartridge
    Working pressure
    0.05Mpa-1.6Mpa
    Material
    SUS304,SUS316L
    Working temperature
    5-40 degree(Special temperature can be customized)
    Filtering accuracy
    1um-800um
    Operation mode
    Manual or automatic control cylinder
    High-strength support basket
    By uniform pore size of high-strength stainless steel mesh manufacture of 3.5mm;
    Inlet and outlet
    1-14 inch or customized
    Inlet and outlet Location
    Side into and side out, side into and bottom out,top into and bottom out, top into and side out or customized
    Interface Type
    flange, screw thread or customized
    Bag model
    and non-calibration
    Filtration precision
    1-800um (microns) relative or absolute precision
    Applications:
    Bag filters for water treatment can be used in various applications, including:
    * Municipal water treatment plants to purify drinking water.
    * Industrial processes to remove contaminants from process water or wastewater.
    * Commercial facilities like restaurants and hotels to improve water quality.
    * Environmental applications to treat stormwater runoff before discharge.

    CROWNS MACHINERY
    Qingdao crowns machinery co.,ltd was located in Huangdao District, the west coast of Qingdao city, Shandong province, China.

    CROWNS MAIN PRODUCTS

    Crownwig integrates manufacturing, R&D with sales, lt has also passed the ISO9001: 2008 quality management system certification.
    Crownwig is committed to providing customers withhigh quality filtration products and services. With advanced production equipment,
    strong R&Dability, and testing equipment all at high state of readiness, Crownwig can satisfy a variety ofprofessionally customized
    requirements
    After years of unremitting efforts, the company has won high praise from its customers regardingits strict quality management and
    high-quality after-sales service, the well-known large customersaccounting for up to 95%. Crownwig assists customers to win a lot
    of government bidding proiectstogether .This is the best affirmation of our products and services

    Q1 : Where is your factory located?
    A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

    Q2 : Are you an integrated supplier for industrial filter machine ?
    A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

    Q3 : How about the quality control in your factory?
    A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

    up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

    before shipment.

    Q4 : Will you offer the pre-sales service?
    A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

    also water.

    electrical,machine layout in factory, etc.

    Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

    machine?
    A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

    and support training to workers also.

    Q6 : What is the delivery time of the machine?
    A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

    time of standard machine could be within 10-30 days

    Q7 : What is the warranty of the machine ?
    A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

    Q8 : Do you provide any spare parts with machine?
    A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
