    304 / 316L / CS Automatic Back Flushing Filter For Cooling Blast Furnaces Self Cleaning

    Ask Lasest Price
    Brand Name : Crowns
    Certification : ISO 9001; CE
    Price : $990-$6850/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000SETS/PER YEAR
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

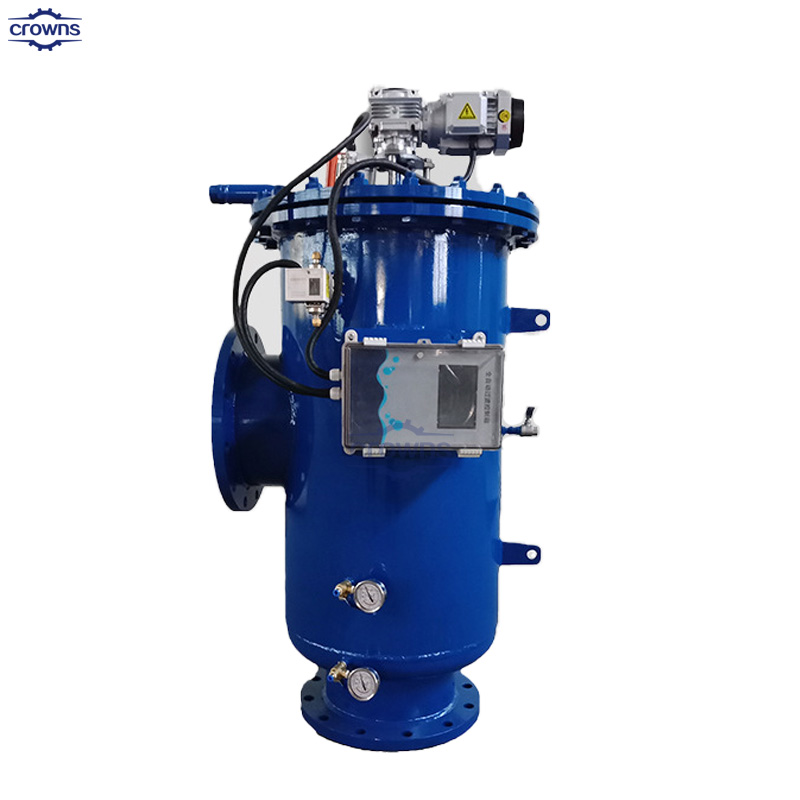

    304 / 316L / CS Automatic Back Flushing Filter For Cooling Blast Furnaces Self Cleaning

    Screen Filter Automatic Self Clean Back-flushing Backwash Filter 25-5000 um 8000 m3h

    Product overviewAutomatic Self-cleaning Filter

    automatic back-flushing filter ( XF Filter for short) is the new generation self-cleaning filter system developed by LIVIC. The filter has a number of slotted filter elements inside. When the filter elements are clogged after working for a period,the back-flushing rotation arm cleans the elements one by one and regenerates the filtration capability. XF filter can automatically and continuously work online with no flow interruption. Different from the common weave screen type self-cleaning filters, XF series automatic back-flushing filter adopts the rigid V-SLOT slotted stainless steel filter element with a V-shape opening which is easy to be cleaned. It has the unique advantage when filtering dirty water containing oily sludge, soft and viscous particles, high content impurities and few fibers. The filtration degree ranges from 50 to 2000 µm. Large filter area and high flowrate per unit. 2”~40” inlet and outlet nozzle size available. The flowrate of the largest XF filter model XF1700 is up to 10560m³/h.



    Micron Rating
    30-3000μm
    Maximum Operating Pressure
    1.0MPa/1.6MPa
    Flow Rate Range
    4~354m3 /h
    Maximum Operating Temperature
    200℃
    Housing Material
    SUS316L/SUS304/CS
    Element Material
    SUS316L/SUS304
    Sealing Material
    NBR/FKM/Silicone/PTFE/EPDM
    Explosion Proof
    Explosive-proof components are used for flammable and explosive operating conditions
    Be support to cunstomized
    yes

    Product Specifications








    Q1 : Where is your factory located?
    A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

    Q2 : Are you an integrated supplier for
    industrial filter machine ?
    A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

    Q3 : How about the quality control in your factory?
    A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

    up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

    before shipment.

    Q4 : Will you offer the pre-sales service?
    A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

    also water electrical,machine layout in factory, etc.

    Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

    machine?
    A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

    and support training to workers also.

    Q6 : What is the delivery time of the machine?
    A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

    time of standard machine could be within 10-30 days

    Q7 : What is the warranty of the machine ?
    A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

    Q8 : Do you provide any spare parts with machine?
    A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
