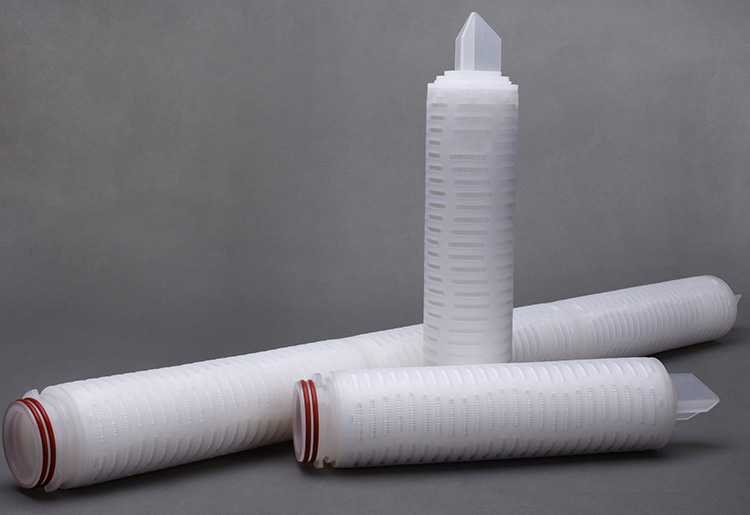

Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

Qingdao Crowns Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM from wholesalers

    Buy cheap Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM from wholesalers
    • Buy cheap Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM from wholesalers
    • Buy cheap Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM from wholesalers
    • Buy cheap Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM from wholesalers

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Ask Lasest Price
    Model Number : BF-PVC001
    Price : $10.8-12/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000SETS/PER YEAR
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Materials Of Construction
    Filter Media:
    Polypropylene Membrane
    Micron Rating:
    0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 20, 30, 50, 100um
    Support Layers:
    Polypropylene
    Cage, Core, End Cap:
    Polypropylene
    Seal Method:
    Thermal Bonded, No Adhesives
    O-rings/Gaskets:
    Silicone, Nitrile, EPDM, Viton, etc
    Cartridge Dimensions
    Outer Diameter:
    69mm
    Inner Diameter:
    33mm
    Length:
    5, 10, 20, 30, 40 Inch
    Filtration Area(m2):
    0.65 m2 per 10"
    Operating Conditions
    Normal Operating Temp.:
    Up to 60℃
    Max. Operating Temp.:
    80℃
    Max. Differential Pressure
    Normal Flow:
    4.2 bar at 25℃
    Reverse flow:
    2.1 bar at 25℃
    PH Value compatibility:
    1-13
    Sterilization:
    Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15 hours
    Flush with hot water at 82℃(180℉) for 30 minutes, at P≤1.0 bar (14psi)--Recommended.
    Cartridge Safety
    Endotoxin:
    <0.25 EU/ml
    Extractables:
    <0.03 g/10"

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM
    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Polypropylene Membrane 50 Microns Pleated Filter Cartridge 30 Inch 222 SOE EPDM

    Q1 : Where is your factory located?
    A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

    Q2 : Are you an integrated supplier for
    industrial filter machine ?
    A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

    Q3 : How about the quality control in your factory?
    A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

    up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

    before shipment.

    Q4 : Will you offer the pre-sales service?
    A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

    also water.

    electrical,machine layout in factory, etc.

    Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

    machine?
    A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

    and support training to workers also.

    Q6 : What is the delivery time of the machine?
    A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

    time of standard machine could be within 10-30 days

    Q7 : What is the warranty of the machine ?
    A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

    Q8 : Do you provide any spare parts with machine?
    A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
